miro Edge

miroEdge overview

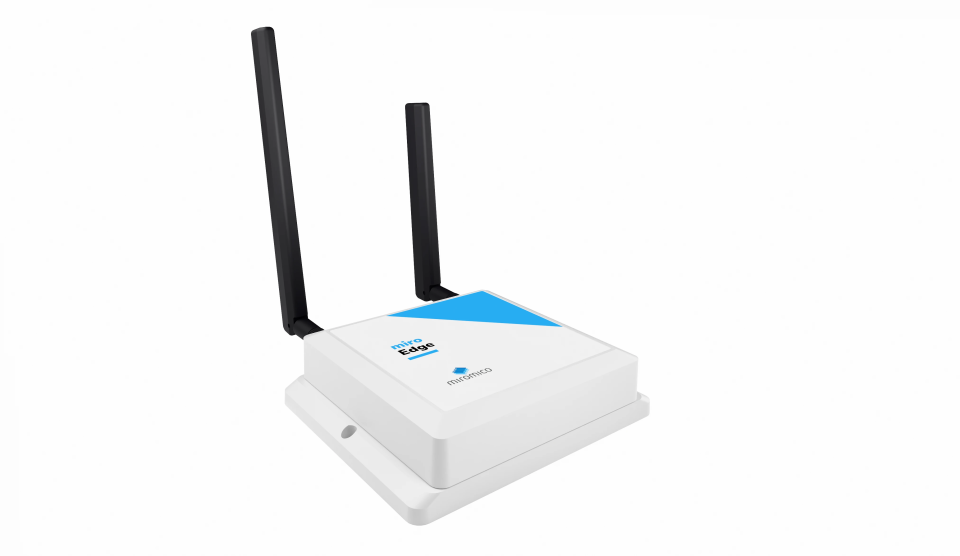

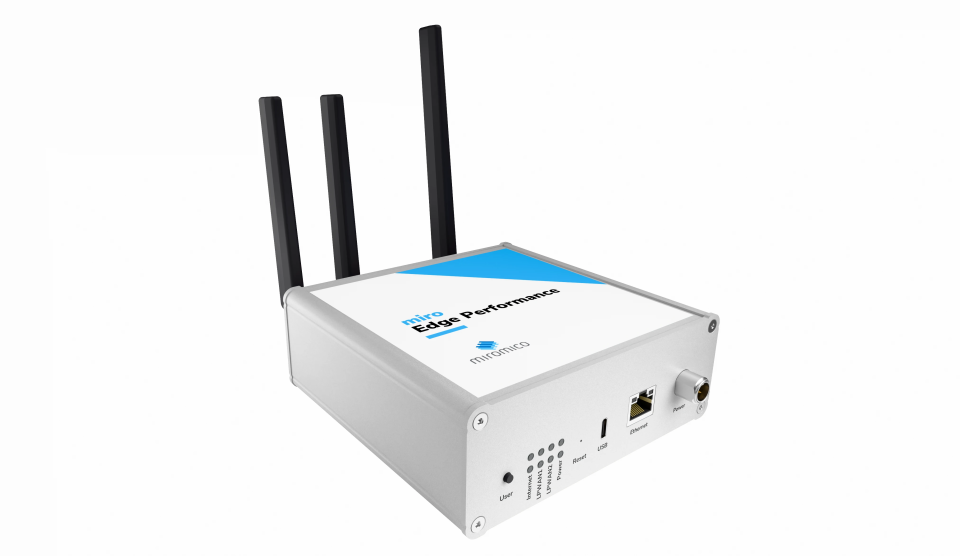

miro Edge is Miromico's LoRaWAN(R) gateway for IoT (internet of things) applications and solutions. It's highly customizable and configurable thanks to its modular hardware components and software platform based on OpenWRT and Linux.

  • ISM Bands for LoRaWAN(R) and LPWAN: EU 868 MHz, US 915 MHz, Global 2.4 GHz
  • Internet Backhaul options: Ethernet, cellular mobile network (LTE, 2G, Satellite, WiFi)
  • Power supply: USB 5V or PoE (Power over Ethernet IEEE 802.3af, see datasheet for options)
  • Variants: indoor, outdoor (IP65)
  • Supported backends (LNS): Packet forwarder, Basic Station, Amazon Web Services, Microsoft Azure Sphere, full custom
  • 2 or 4 mPCIe extension ports
  • Location: GPS
  • Extended Memory: SD card slot
  • Remote Management: Zerotier

Box content

  • miro Edge gateway
  • LoRa Antenna
  • LTE Antenna (LTE version only)
  • USB charger and cable

Installing the gateway

  • Connect the gateway to an internet enabled ethernet port. The network needs to provide an IP address through DHCP (ETH variant)
  • Supply the gateway over the micro USB cable and power adapter. Use the provided USB cable and power supply.
  • PoE variant: Connect the gateway to your local network (needs PoE capable Port).
  • Register your gateway on the LoRa Network Server (LNS).

Important

Only use the provided USB cable and power supply for proper and stable gateway operation

Configure your gateway

As initial configuration, at least check the following options:

  • LoRa Network Server configuration
  • Mobile Network APN configuration

See configuration section for details.

See firmware update on how to update your gateway to the latest firmware image or factory reset to remove all user configuration from the device.

Downloads

See downloads page for available assets.
